iTrans WP70HBC (US)
- iTrans WP70HBC (US)
- 2 x 1 wall plate switch transmitter over HDBT 3.0
- Supports automatic and manual switching (button & API commands) between the inputs of USB-C and HDMI + USB-B.
- Full-featured USB-C input supports 4K video and USB data delivery, as well as 60W charging*.
- HDMI 2.0 input supports video resolutions up to 4K@60Hz 4:4:4 8bit and HDCP 2.2.
- Supports transmission of 4K@60Hz 4:4:4 8bit signal up to 40m/131ft and of 4K@30Hz 4:4:4 8bit signal up to 70m/230ft via a Cat 6A or above cable.
- An additional analog pass-through channel allows for independent audio distribution to the HDBT receiver.
- High-speed USB 2.0 pass-through with data rate up to 300Mbps.
- The RS232 port supports command pass-through, API control and firmware update.
- PoH+ PD function enables the transmitter to be powered by an HDBT receiver.
- Supports control of the display on/off through CEC.
- US 2-Gang version.
- *Note: The USB-C 60W charging requires an additional power adapter to be connected to the wall plate transmitter.
Datasheet

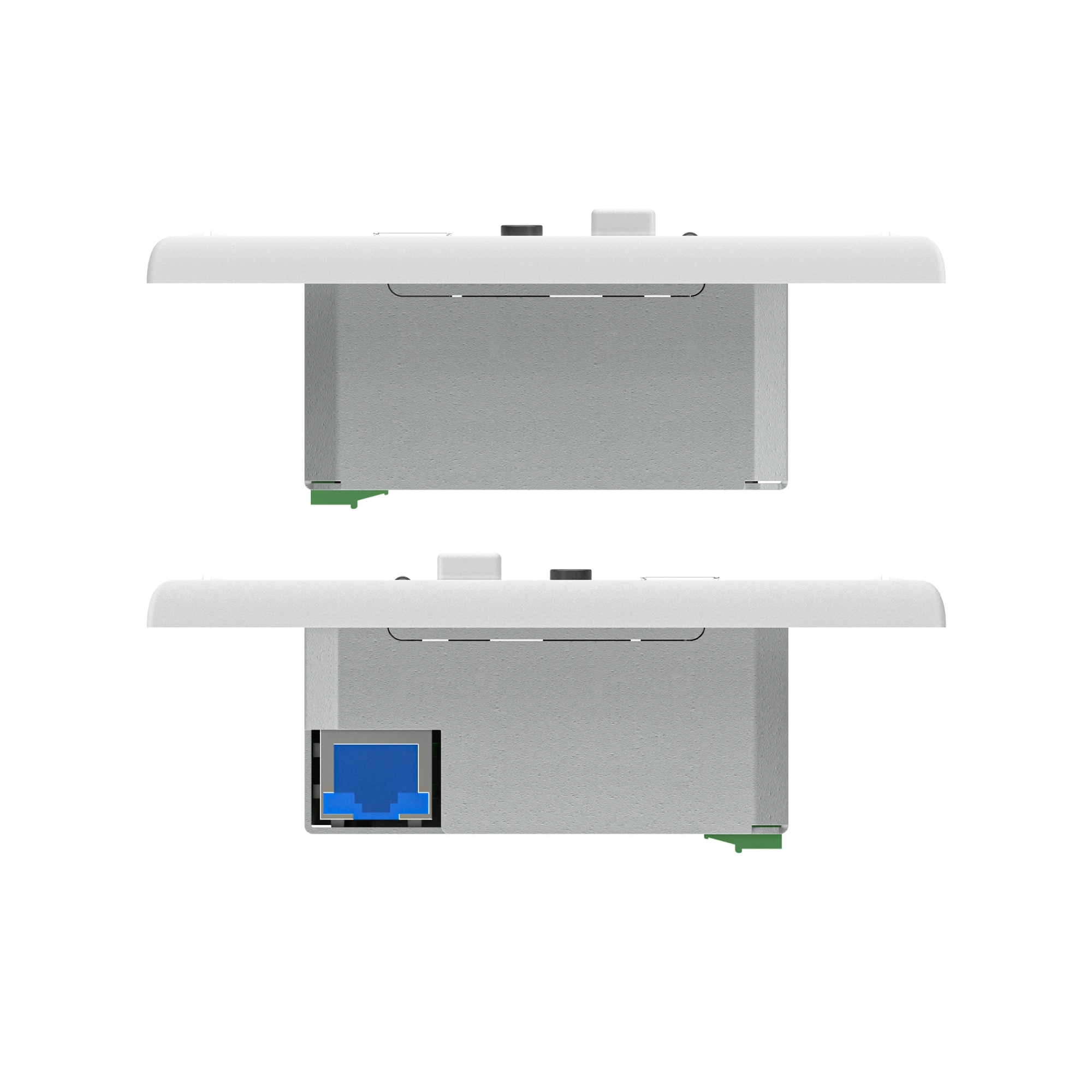

| iTrans WP70HBC (Tx) | |
| Input | 1 x HDMI IN, 1 x USB-C IN |
| Output | 1 x HDBT 3.0 OUT |
| Input/Output Video Singal | Input: HDMI up to 4K@60Hz (4:4:4 8-bit), HDCP 2.2; USB-C Up to 4K@60Hz (4:4:4 8-bit), HDCP 2.2 Output: HDBT 3.0 |
| Input/Output Resolutions Supported | HDMI/USB-C/HDBT: Up to 4096 x 2160 60Hz 4:4:4 |
| Maximum Data Rate | 18Gbps |
| Audio Format | HDMI IN / USB-C IN: Supports multi-channel audio formats, including PCM 2.0/5.1/7.1, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio and DTS:X LINE IN-P: Stereo |
| Operating Temperature | 0°C to 45°C (32°F to 113°F) |
| Storage Temperature | -20°C to 70°C (-4°F to 158°F) |
| Humidity | 10% to 90%, non-condensing |
| ESD Protection | Human-body Model: ±8kV (Air-gap discharge) / ±4kV (Contact discharge) |
| Power Supply | PoH+; DC 20V 6A (optional, for USB-C charging) |
| Power Consumption (Max) | 6.6W (USB-C charging not included) 71.6W (USB-C charging included) |
| Device Dimension | 89mm x 105.6mm x 36.25mm / 3.5” x 4.16” x 1.43” (W x H x D) |
| Product Weight | 0.36kg/0.79lb |

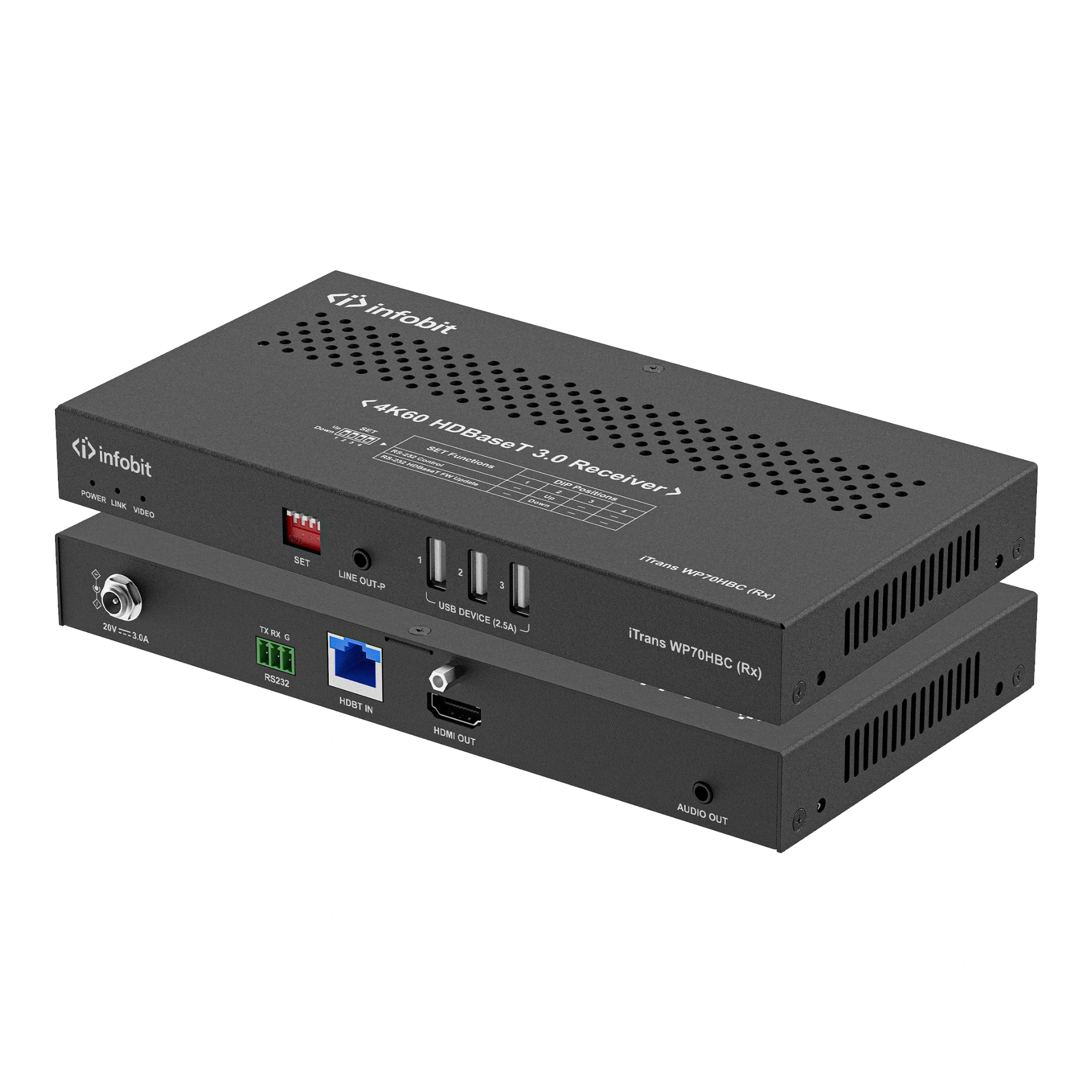

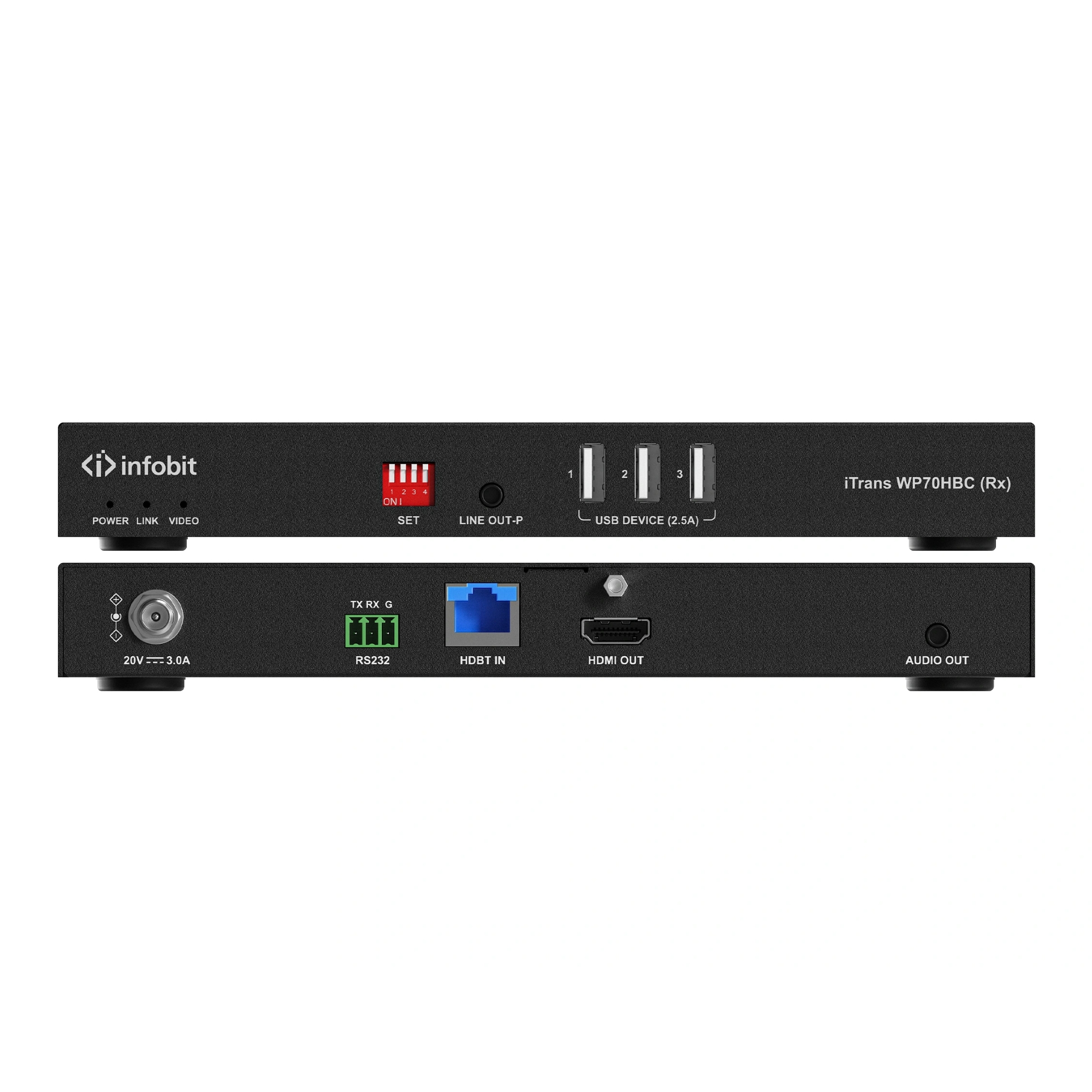

| iTrans WP70HBC (Rx) | |
| Input | 1 x HDBT IN |
| Output | 1 x HDMI OUT |
| Input/Output Video Singal | Input: HDBT 3.0 Output: HDMI up to 4K@60Hz (4:4:4 8-bit), HDCP 2.3 |
| Input/Output Resolutions Supported | HDMI/HDBT: Up to 4096 x 2160 60Hz 4:4:4 |
| Maximum Data Rate | 18Gbps |
| Audio Format | HDMI OUT: Supports multi-channel audio formats, including PCM 2.0/5.1/7.1, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio and DTS:X LINE OUT-P/AUDIO OUT: Stereo |
| Operating Temperature | 0°C to 45°C (32°F to 113°F) |
| Storage Temperature | -20°C to 70°C (-4°F to 158°F) |
| Humidity | 10% to 90%, non-condensing |
| ESD Protection | Human-body Model: ±8kV (Air-gap discharge) / ±4kV (Contact discharge) |
| Power Supply | DC 20V 3A |
| Power Consumption (Max) | 10.92W |
| Device Dimension | 212.5mm x 25mm x 110mm / 8.37” x 0.98” x 4.33” (W x H x D) |
| Product Weight | 0.46kg/1.01lbs |
