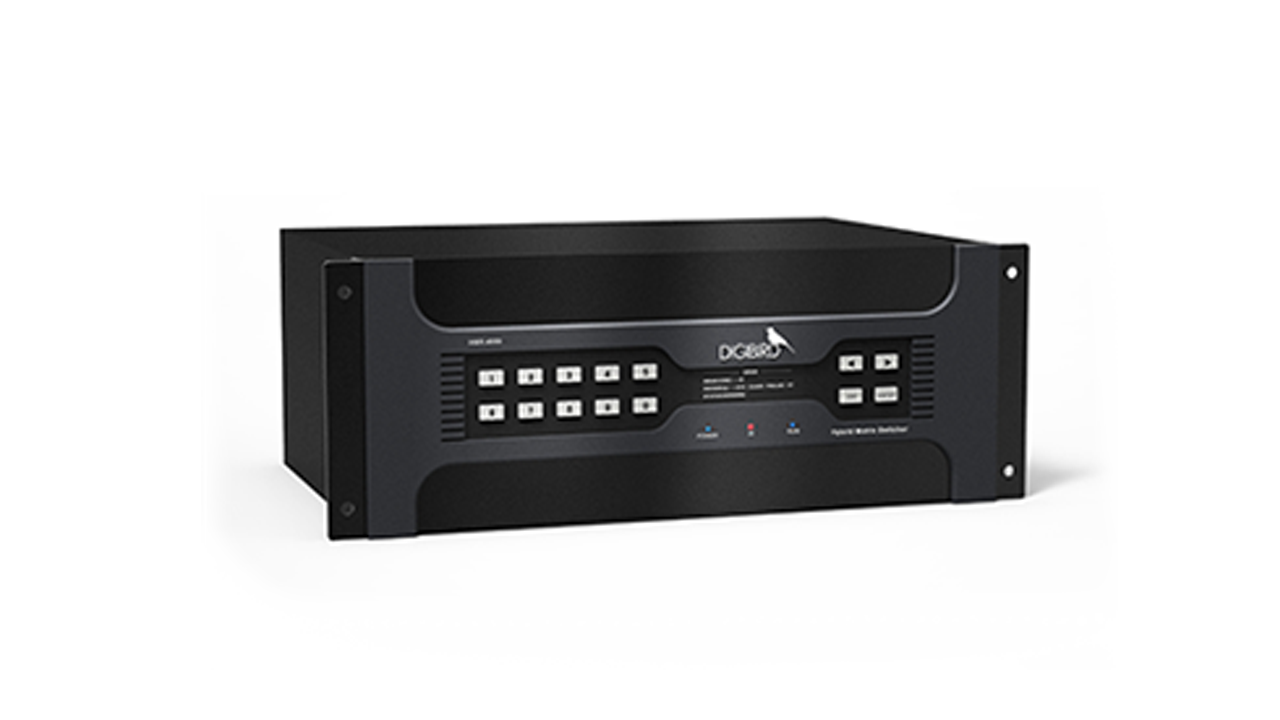

Modular Hybrid Matrix Switchers
HMX-4000
Seamless Switching
Real-time instant switching. Switching speed is less than 17 milliseconds with no black or blue screen
No signal latency (zero frame delay)
Synchronous Audio and Video switching
Designed for High-Availability and Scalability
Modular Hardware Architecture
Redundant Hot-Swappable I/O (Input and Output) Cards
Redundant Power Supply Units
Redundant Hot-Swappable System Fan
Routing configuration: 2 × 2 to 18 × 18
Maximum data rate: 10.2 Gbps (3.4 Gbps per color)
Maximum pixel clock: 297 Mhz
Maximum output resolution up to 4K × 2K, i.e. 4096×2160 at 24 Hz (which is a resolution used with digital theaters) or 3840×2160 (Ultra HD) at 24 Hz/25 Hz/30 Hz
Diversity of signals: HDMI, DVI, analog VGA, composite video (BNC), component video (BNC)
Scaling up to 1920 × 1200 for each output
Supports Audio Embedding and De-Embedding
EDID Management
HDCP Compliant
