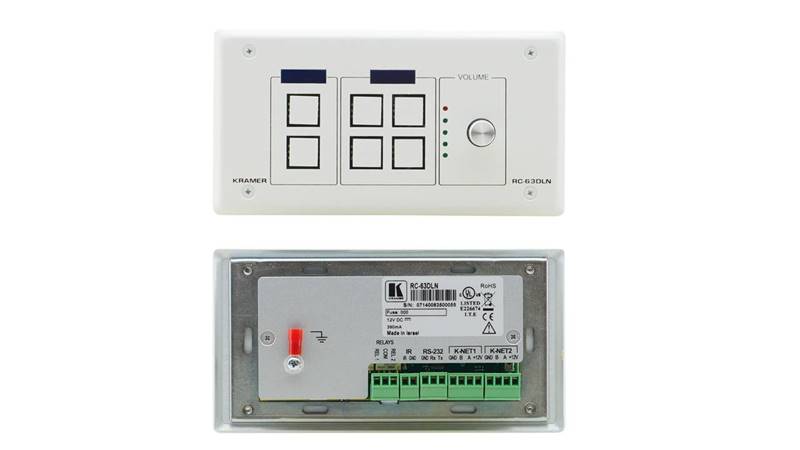

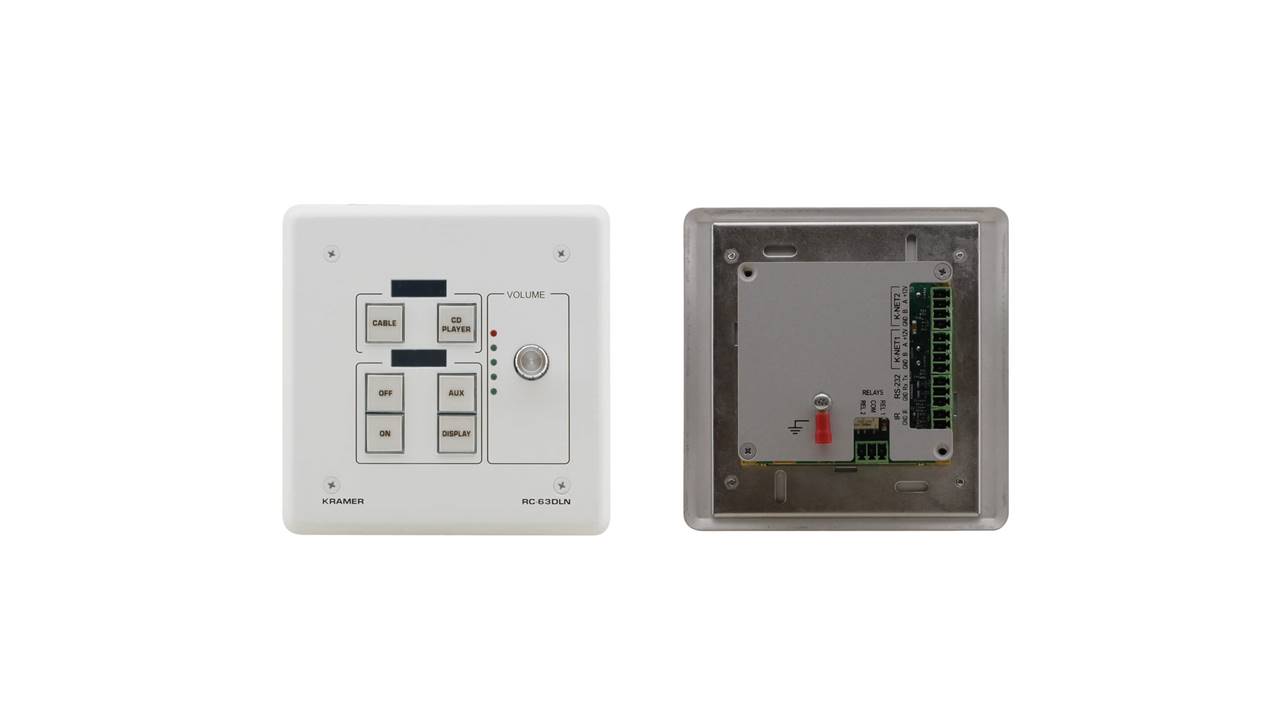

RC-63DLN
ระบบควบคุมอุปกรณ์ในห้อง สามารถตั้งโปรแกรมได้ 6 ปุ่ม รวมถึงปุ่มควบคุมแบบหมุน และมีจอแสดงสถานะแบ่งกลุ่มของปุ่ม.
PORTS
1 RS–232 on terminal block connectors, 2 K–NET on terminal block connectors, 1 mini USB for programming
OUTPUT
2 Relays on terminal block connectors (36V AC or DC, 2A, 60V AC maximum on non–inductive load), 1 IR emitter on terminal block connectors
POWER CONSUMPTION
12V DC, 100mA
FUSE
500mA, FSMD 2920
ADAPTER
12V, 500mA
OPERATING TEMPERATURE
0° to +40°C (32° to 104°F)
STORAGE TEMPERATURE
–40° to +70°C (–40° to 158°F)
HUMIDITY
10% to 90%, RHL non–condensing
INCLUDED ACCESSORIES
Power supply, label set, screwdriver
OPTIONS
RK–121WP 19" rack adapter
PRODUCT DIMENSION
11.43cm x 2.50cm x 11.43cm (4.50" x 0.98" x 4.50" ) W, D, H
PRODUCT WEIGHT
0.1kg (0.2lbs) approx
SHIPPING DIMENSION
23.20cm x 13.60cm x 10.00cm (9.13" x 5.35" x 3.94" ) W, D, H
SHIPPING WEIGHT
0.4kg (0.9lbs) approx

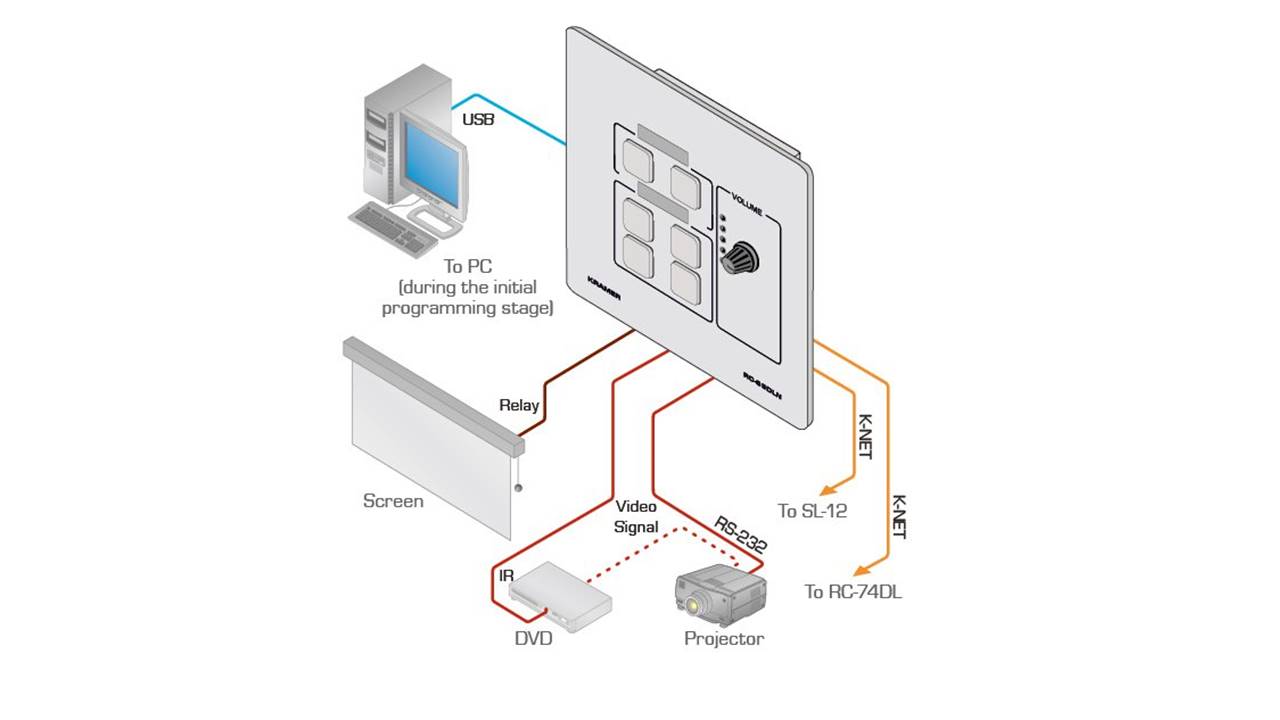

Diagram
Back Lit & Label Capable Buttons — 6 RGB–color, tactile feedback, backlit buttons. Buttons are grouped in 2 groups, 4 buttons in ‘SOURCES’ group, and 2 buttons in ‘DISPLAY’ group.
Custom Labeled, Removable Button Caps.
Volume Control Knob with LEDs — Bi–directional rotary dialed digital knob for volume control, with 5 LED bar for visual volume level feedback.
2 K–NET™ Connectors — Connects to master room controller, and auxiliary keypads for remote keypad control.
K–NET™ Single Link Connection — Provides a single keypad link cable–connectivity, carrying both power and keypad control communication information.
RS–232 Control Port — Controls a device via serial control protocols.
IR Emitter Control Port — Controls a device via IR control protocols.
Relay Control Port — Controls a device via relay contact closure.
IR Sensor Port — Learns commands from IR remotes.
Program Control — Program configuration with Kramer K–Config software.
Keypad Lock–Out — Option for tampering prevention by locking and unlocking of the keypad buttons.
Mini USB Port — To upload configuration files, set the K–NET™ ID number, and power the device during configuration.
Mounting — In–wall, in standard 2 gang EU, UK, and US wall junction boxes.
Easy Installation — Fits to standard in–wall boxes for simple and cost–reducing installation.
