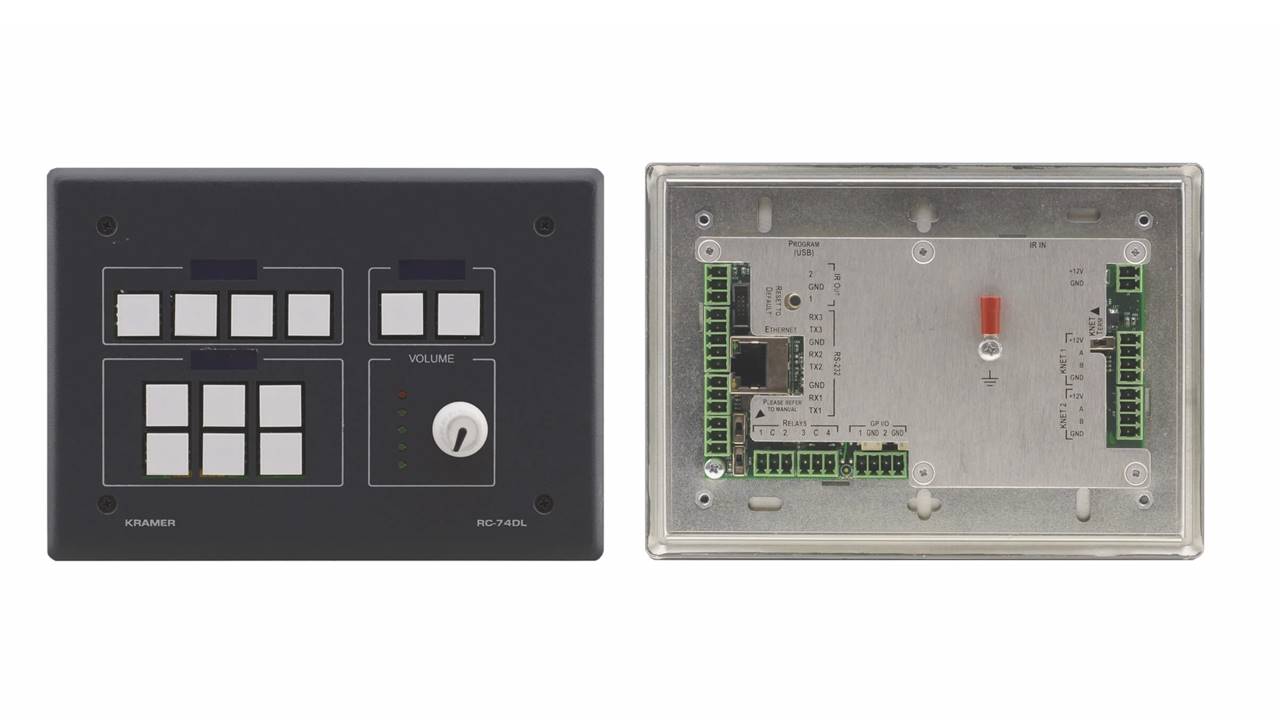

อุปกรณ์ควบคุมระบบภาพและเสียง

RC-74DL


ระบบควบคุม อุปกรณ์ในห้อง สามารถ ตั้งโปรแกรมได้ 12 ปุ่ม รวมถึงปุ่มควบคุมแบบหมุน มีจอแสดงสถานะแบ่งกลุ่มของปุ่ม



สนใจสินค้าชิ้นนี้
ติดต่อเซลล์เพื่อข้อเสนอสุดพิเศษ

PORTS

1 RS–485, 3 RS–232, 2 GPI/O, 2 K–NET on terminal block connectors, 1 Ethernet on an RJ–45 connector, 1 infrared sensor , 1 mini USB for programming



OUTPUTS

2 IR emitter, 4 relays (36V AC or DC, 2A, 60V AC maximum on non–inductive load), on terminal block connectors



DEFAULT IP SETTINGS

IP number 192.168.1.39

Mask — 255.255.0.0

Gateway — 0.0.0.0



POWER CONSUMPTION

12V DC, 570mA



OPERATING TEMPERATURE

0° TO +40°C (32° TO 104°F).



STORAGE TEMPERATURE

−40° TO +70°C (−40° TO 158°F).



HUMIDITY

10% to 90%, RHL non–condensing



INCLUDED ACCESSORIES

Power supply, mud ring, label set, screwdriver



OPTIONS

RK–121WP 19" rack adapter



PRODUCT DIMENSION

16.20cm x 2.30cm x 11.43cm (6.38" x 0.91" x 4.50" ) W, D, H



PRODUCT WEIGHT

0.6kg (1.3lbs) approx



SHIPPING DIMENSION

35.10cm x 21.20cm x 7.20cm (13.82" x 8.35" x 2.83" ) W, D, H



SHIPPING WEIGHT

0.7kg (1.6lbs) approx

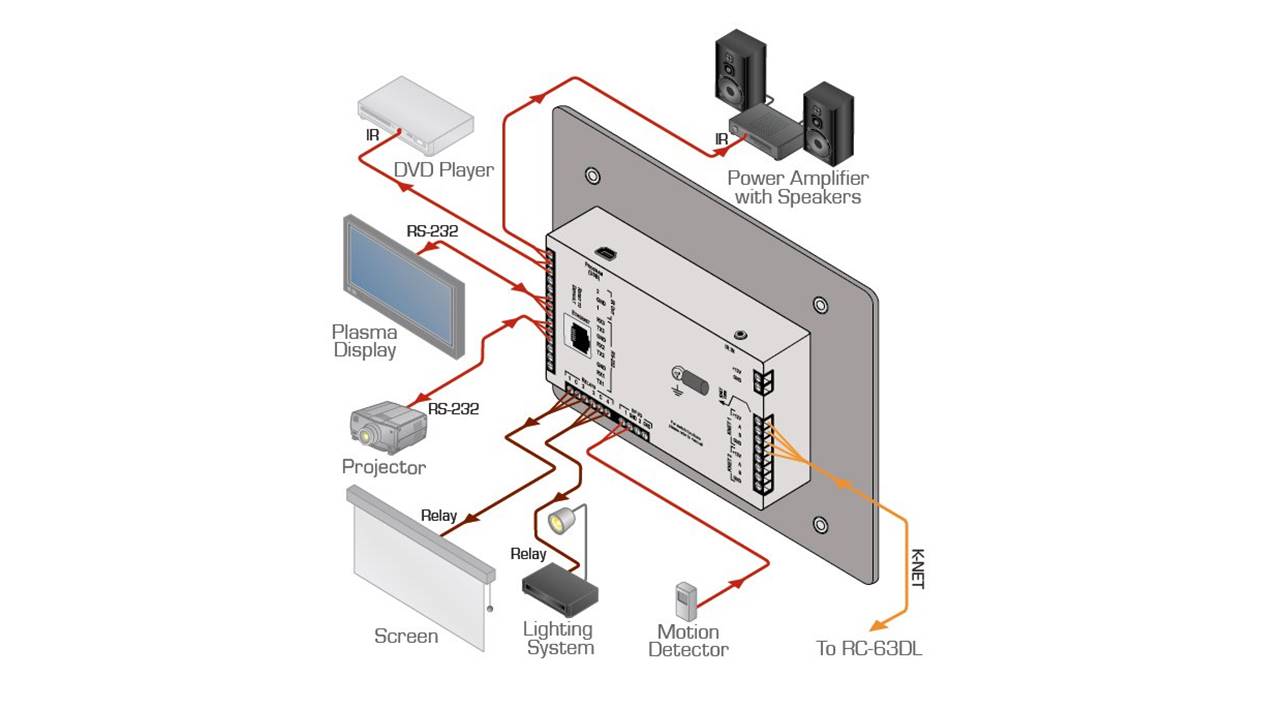

Diagram



Overview

Back Lit & Label Capable Buttons — 12 RGB–color, tactile feedback, backlit buttons. Buttons are grouped in 3 groups, each with it group LCD display.

Custom Labeled, Removable Button Caps.

Volume Control Knob with LEDs — Bi–directional rotary dialed digital knob for volume control, with 5 LEDs bar for visual volume level feedback.

LCD Displays — 3 blue–color and 8 white–characters LCD displays, in 3 button groups, for programmed visual feedback indication and group configured labeling.

2 K–NET™ Connectors — Connect to master room controller, and auxiliary keypads for remote keypad control.

K–NET™ Single Link Connection — Provides a single keypad link cable–connectivity, carrying both power and keypad control communication information.

1 RS–485 Bi–directional Control Port — Control devices via RS–485 control protocols.

3 RS–232 Bi–directional Control Ports — Control a device via bi–directional serial control protocols.

2 IR Emitter Control Ports — Control a device via IR control protocols.

2 GPI/O Control Ports — Control a device via general purpose I/O ports, program–configured as digital input, digital output or analog input interface for controlling sensors, door–locks, audio volume and light dimming level, or lighting control devices.

4 Relay Control Ports — Control a device via relay contact closure, such as scrolling up and down screens, drapes, shades, and blinds.

IR Sensor Port — Learns commands from IR remotes.

Program Control — Program configuration with Kramer K–Config software.

Kramer Site–CTRL™ Compatibility — For network management and remote control over the Ethernet port.

Keypad Lock–Out — Option for tampering prevention by locking and unlocking of the keypad buttons.

Mini USB Port — For uploading configuration files, setting the K–NET™ ID number, and powering the device during configuration.

Mounting — In–wall, in standard 3 gang US wall junction boxes.

Easy Installation — Fits to standard in–wall boxes for simple and cost–reducing installation.
