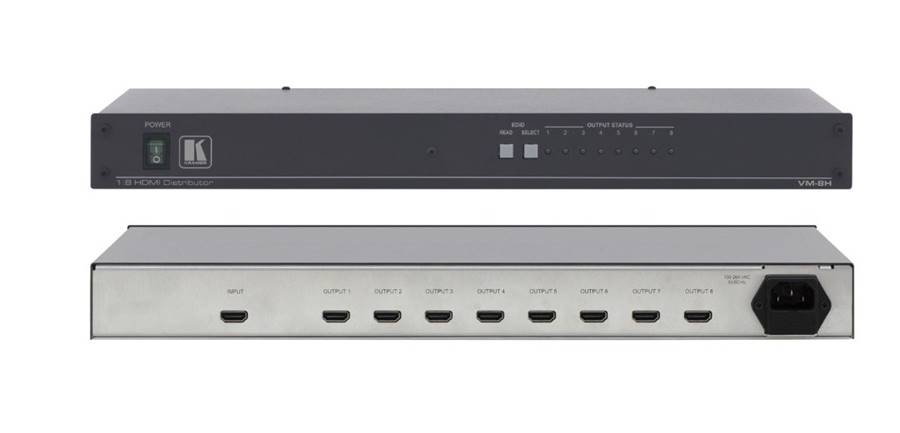

VM-8H
VM-8H เป็นอุปกรณ์กระจายสัญญาณ HDMI จาก 1 Input ไปยัง 8 Output.
INPUT
HDMI connector
OUTPUTS
8 HDMI connectors
BANDWIDTH
6.75Gbps (2.25Gbps per graphic channel)
COMPLIANCE WITH HDMI STANDARD
Supports HDMI and HDCP
CONTROLS
SELECT and READ buttons for selecting and storing EDID information
INDICATOR LEDS
OUTPUT STATUS 1 to 8
OPERATING TEMPERATURE
0° to +40°C (32° to 104°F)
STORAGE TEMPERATURE
–40° to +70°C (–40° to 158°F)
HUMIDITY
10% to 90%, RHL non–condensing
POWER CONSUMPTION
100–240V AC, 50/60Hz 28VA
INCLUDED ACCESSORIES
Power cord

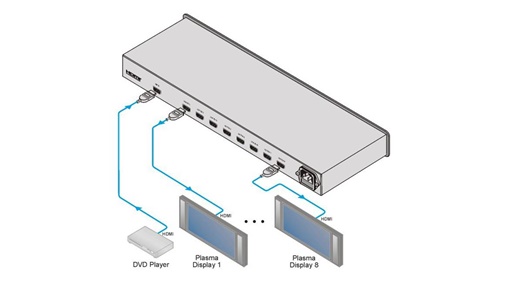

Diagram
Overview
Max. Data Rate — 6.75Gbps (2.25Gbps per graphic channel).
HDTV Compatible.
HDCP Compliant.
HDMI Support — Deep Color, x.v.Color™, Lip Sync, CEC.
3D Pass–Through.
I–EDIDPro™ Kramer Intelligent EDID Processing™ — Intelligent EDID handling & processing algorithm ensures Plug and Play operation for HDMI systems.
Kramer Equalization & re–Klocking™ Technology — Rebuilds the digital signal to travel longer distances.
Active Output LED Indicators.
Worldwide Power Supply — 100–240V AC.
Standard 19” Rack Mount Size — 1U. Rack "ears" included.
